Picture of the lens laser welding machining samples

Laser welding of the electronic connectors		Laser welding of mobile phone structural parts
Laser welding of stamping small hardware pieces		Button battery ear electrode laser welding
Laser spot welding on the back side of the stud		Iron shell laser welding

Applied range

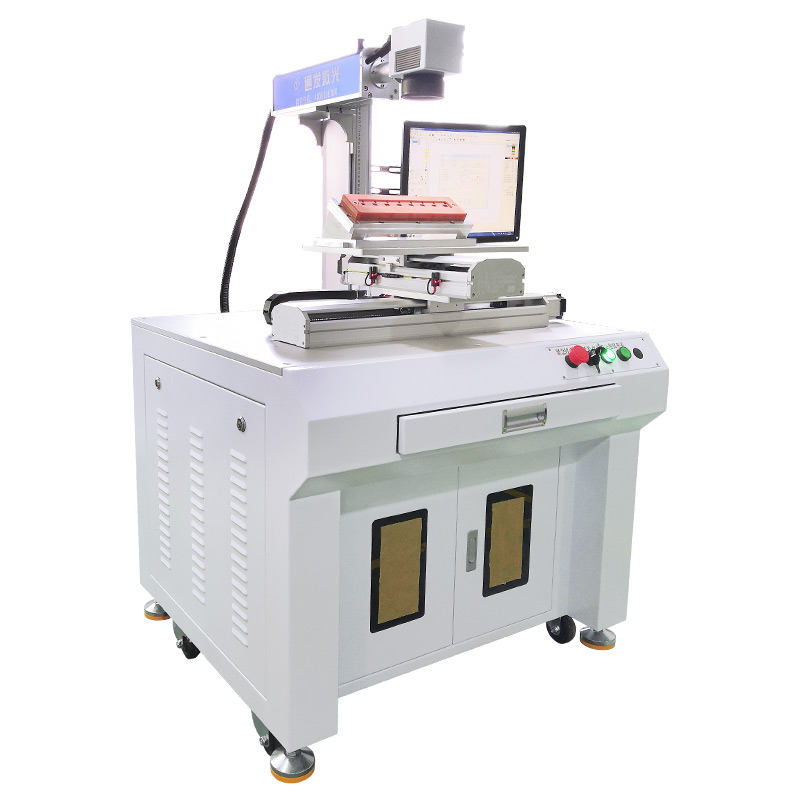

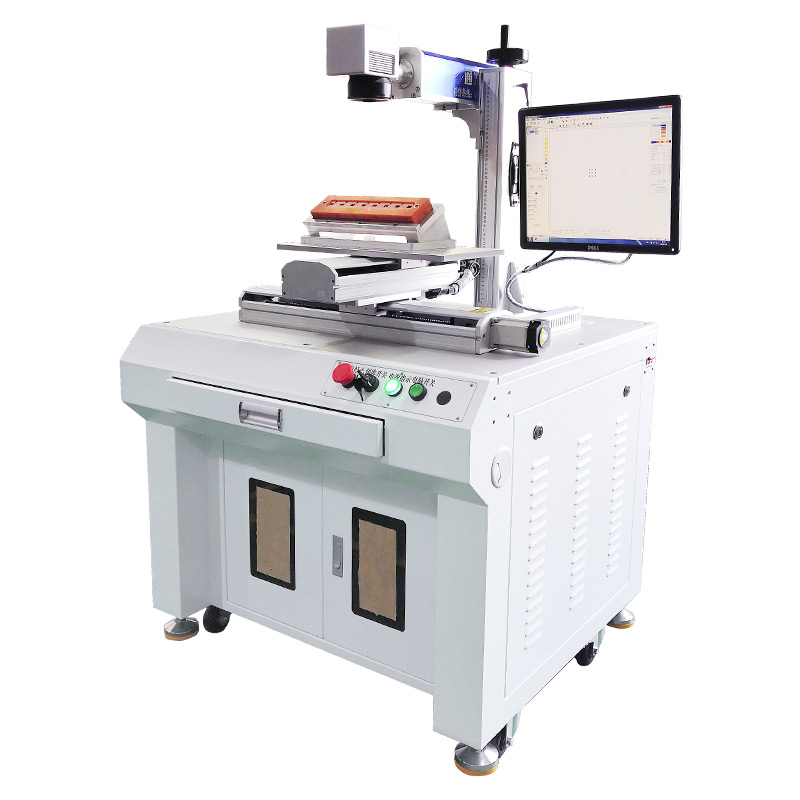

Vibrator scanning laser spot welding machine is the introduction of foreign technology, the key components with high quality imported parts production, welding machine, using the scanning lens of dynamic welding process, and adopt the movement of scanning lens moving or welding lens, make the lens in the scanning lens will laser beam quickly switch between solder joints, the greater the distance between the solder joint, the more the number of solder joints on the workpiece, the more obvious advantage. In the single point welding, because the empty-range positioning time is greatly reduced, the production efficiency is 4- -10 times higher than the laser spot welding of the ordinary XY workbench.

Standard workbench

		Laser welding machine six-axis manipulator The manipulator in laser welding has been fully utilized, especially the automobile assembly line welding, the use of manipulator can achieve unmanned workshop production, efficiency is greatly improved. This manipulator is 5 axis control, machining radius is optional, can achieve the laser welding of large products.
		Laser welding machine horizontal workbench Horizontal workbench, using the four-axis linkage control mode, can weld and process special-shaped products, Z-axis can be customized according to the different needs of customer products, the installation position can be increased, can also customize the customer needs to travel.
		Laser welding machine automatic bench The workbench can be linked with four axes to realize the spot welding of the curved surface.

Professional laser welding PC motion control system

1. Use the mature solutions of industrial motion control to integrate the laser welding machine and motion control into the PC operation interface of the machine.

2. Powerful PC control, easy to program, debug and maintain. Can complete automatic or semi-automatic spot welding, butt welding, stack welding, sealing welding, for the complex plane straight line, arc and any track of welding.

3. The software adopts IDE integrated working environment, and the main interface integrates graphic editing, operation monitoring, acquisition and programming, and motion control. The layout is simple and professional, which can effectively improve work efficiency.

4. Real-time control, without other PC operating system plug-in.

5. High performance motion control can be carried out on the 4 axes to realize the programming of welding trajectory in space.

6. Provide multi-language display (simplified Chinese, English, etc.), and support international applications.

Open laser PC motion control card	Operating interface of welding software of common hair laser welding machine
Operating interface of welding software of common hair laser welding machine	Operating interface of welding software of common hair laser welding machine

Product Parameter

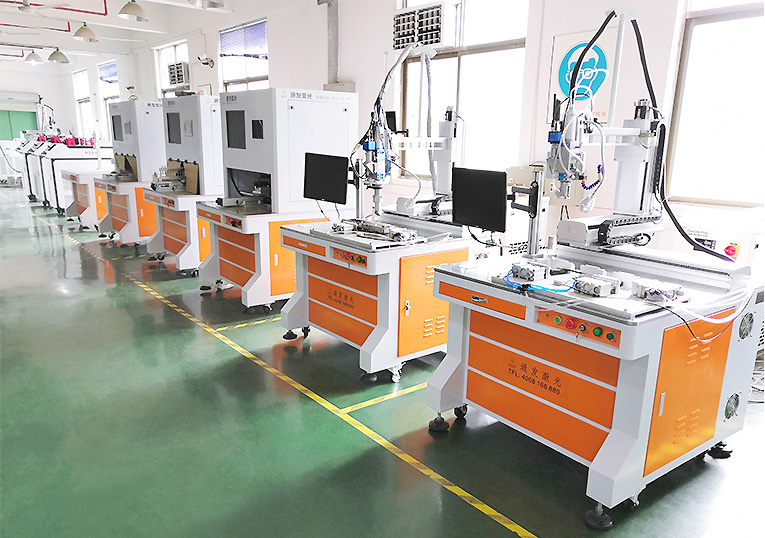

厂家实拍
