Fiber-optic laser welding machining samples

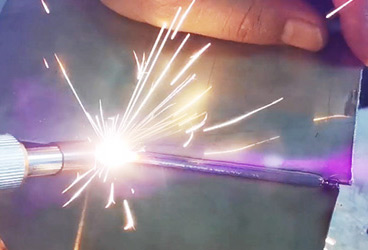

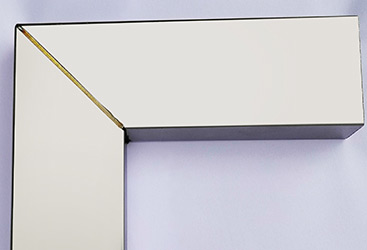

Right-angle laser welding in stainless steel plate		Sheet metal inner angle laser welding

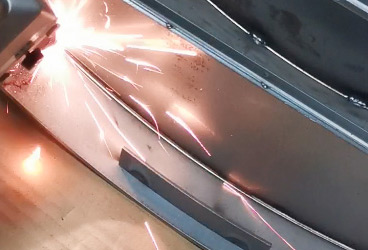

Laser welding at the outer corner of the cabinet		Aluminum plate handheld laser splicing welding

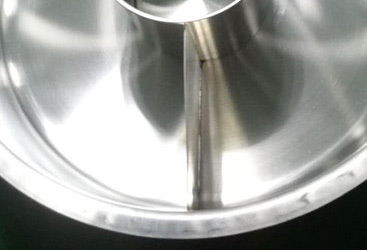

Galvanized plate circular arc handheld laser full welding		Mandarin duck hot pot basin laser sealing welding

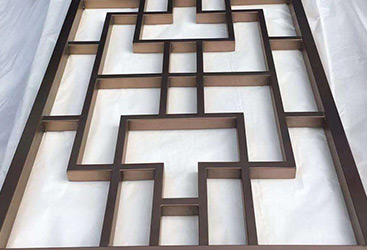

Door frame handheld laser welding		Stainless steel, aluminum alloy doors and Windows handheld sealing welding

Applied range

Mainly for large workpiece, fixed positions such as inner right Angle, outer right Angle, plane weld welding, welding heat impact area is small, small deformation, and welding depth is large, welding firm. Is a more flexible and brand-new welding process for long-distance welding of large workpieces.

Large and medium-sized sheet metal, cabinet, chassis, aluminum alloy door and window frame, stainless steel wash basin and other large parts of the inner and outer Angle, long distance spot welding, folding welding, full welding, sealing welding, etc.

Product characteristics

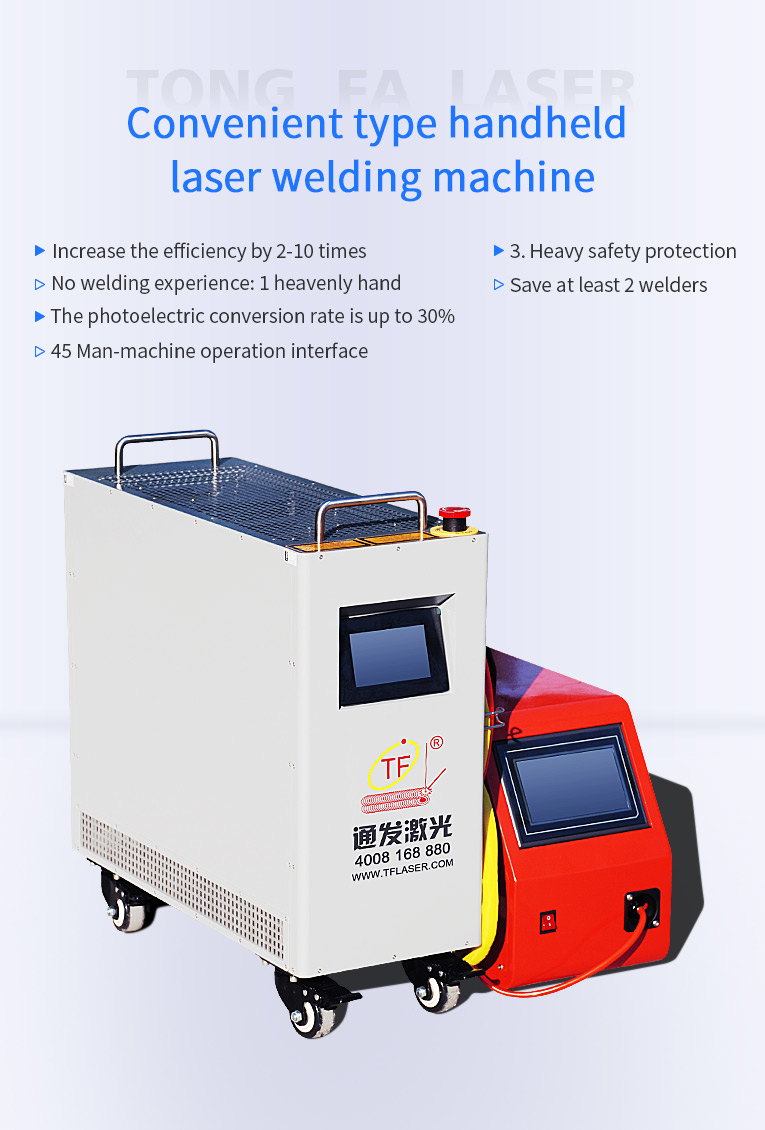

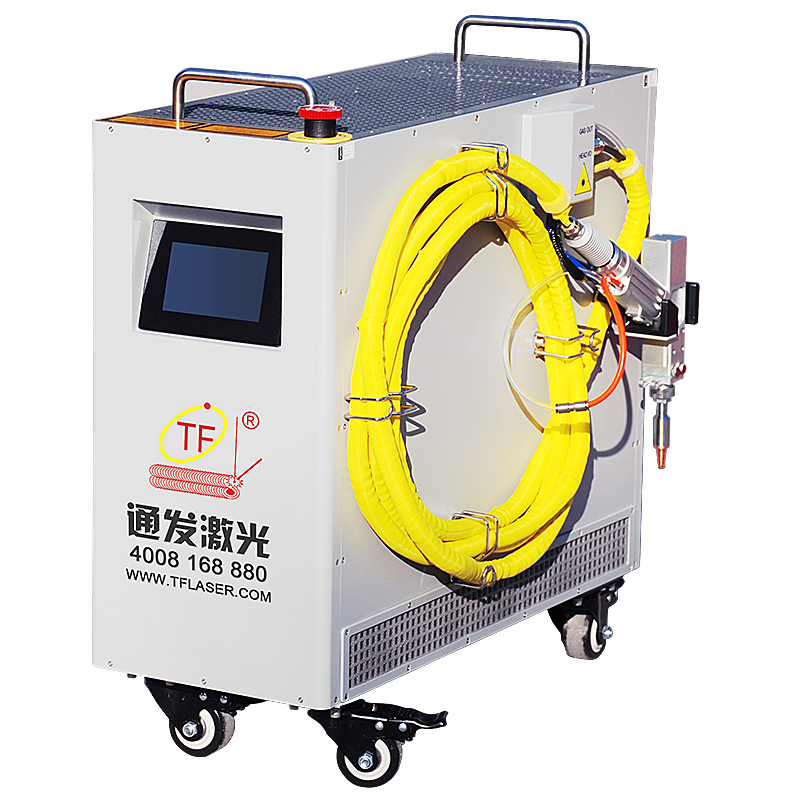

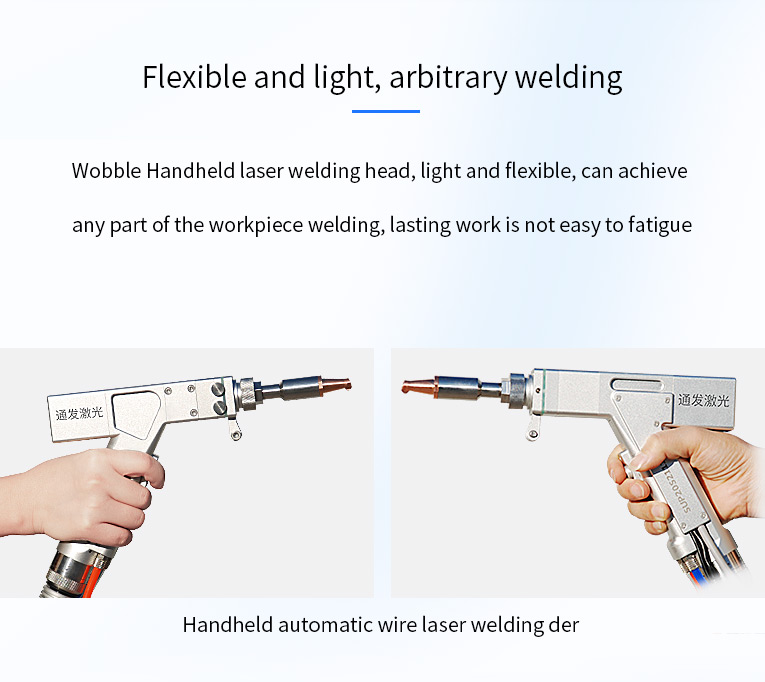

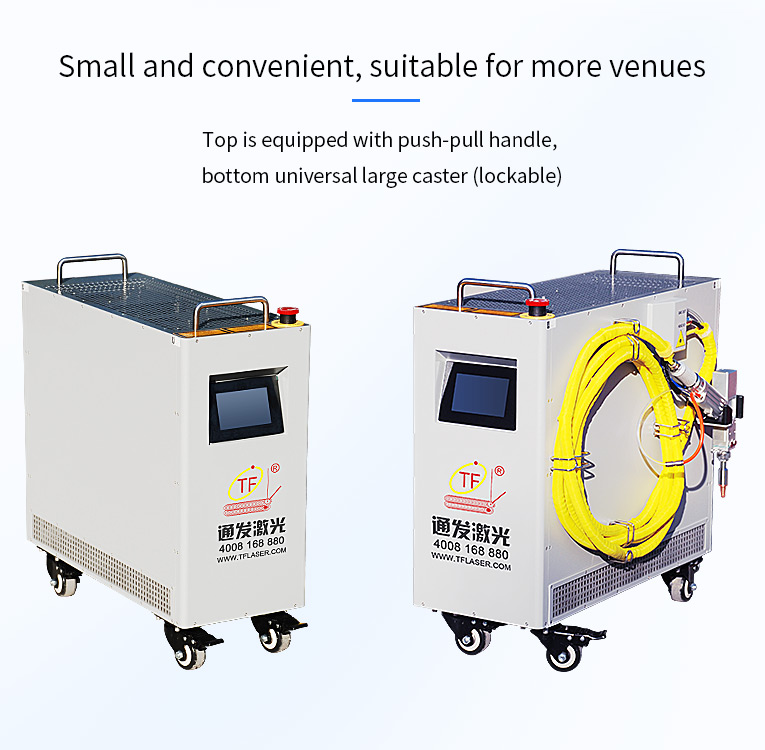

It covers a small area Flexible and convenient integrated design, laser, water tank, control part combined together, covers a small area, low requirements for the site, equipped with mobile pulley, can adjust the station at any time according to the site requirements, convenient and flexible. Hand-held welding head, transmission optical fiber can choose 10 meters, break the limitations of the bench, can reach a wider welding range, suitable for a variety of complex welds, can be any part of the workpiece, Angle laser welding processing.
Good welding effect, firm weld joint Continuous laser mode, smooth weld transition, no fish scales and firm weld; small welding thermal influence area, small yellow and black area on both sides of the weld, and small overall deformation of workpiece; [] weld surface pile is high and small, without secondary grinding treatment to reduce labor and time cost.
Low use and maintenance costs The optical conversion efficiency of continuous laser is more than 30%, which is 10 times that of solid YAG laser (3%), and the power stability is ± 0.5%; it is 3-5 times that of argon arc welding, saving at least 2 welders and 1 grinder a year. There is no optical lens in the resonator, the life of the pump source is more than 100,000 hours, and it is basically maintenance-free.
