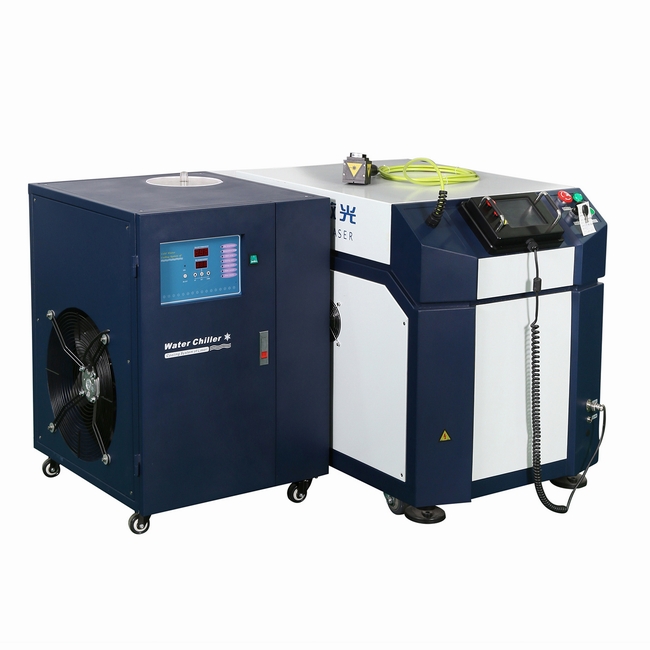

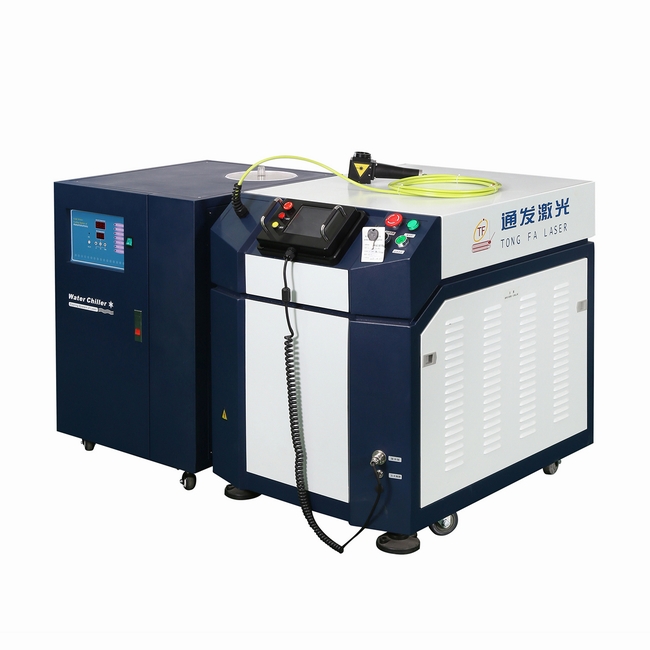

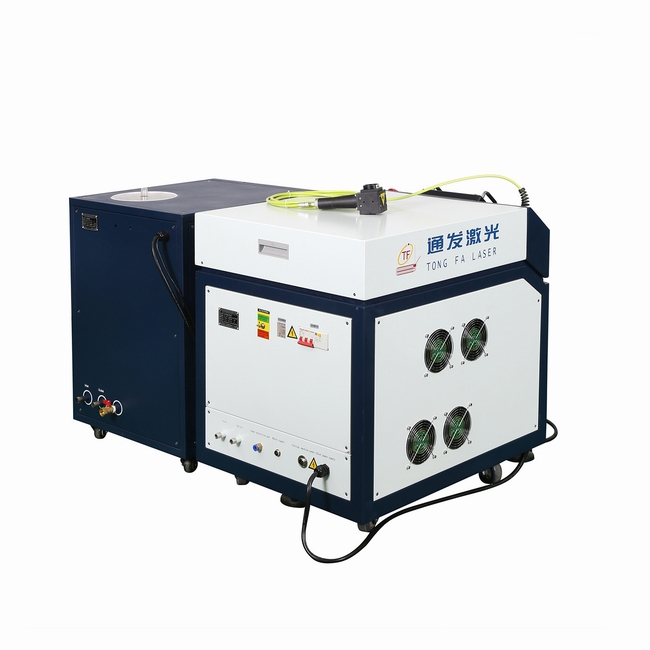

The laser TFL-150 PF fiber laser welding machine adopts energy feedback control mode, energy is stable, optical fiber transmission beam quality is good, suitable for precision laser welding of 0.5mm metal stainless steel plate below 5mm, is a special model for small and medium power welding of batch hardware products.

Fiber laser welding machining sample picture

Mobile phone stainless steel metal parts made by laser welding		Laser welding of stainless steel and titanium alloy glasses
Laser welding processing of stainless steel water cup		Gold and silver jewelry made by laser spot welding
Laser welding of the gold pendant		Laser welding of the printer scraper

Applied range

The laser TFL-150 PF fiber laser welding machine adopts energy feedback control mode, energy is stable, optical fiber transmission beam quality is good, suitable for precision laser welding of 0.5mm metal stainless steel plate below 5mm, is a special model for small and medium power welding of batch hardware products.

Precision power supply

1. The equipment adopts the boost power supply, which is not affected by the fluctuations of the power grid, and the single-point energy output capacity of the power supply is also stronger.

2. The power supply of the equipment adopts the shunt design, which diverts the large heating components to several roads for control, effectively reducing the heating power of the power supply.

3. The power supply of the equipment adopts the imported IGBT to ensure the quality.

4. the laser power supply adopts high power isolation conversion technology, the human body touches any discharge part will not be electric shock, the safety is improved.

5. laser high current discharge has hardware and software over-current protection lock and alarm.

Core laser

1. The laser rod adopts the new YAG laser rod, optimizes the parameters of the laser rod, and improves the laser photoelectric conversion efficiency, which is better than the single point energy and beam quality of the ordinary laser rod.

2. Using full cavity water cooling technology makes the laser rod and lamp dissipate heat faster and improves the optical stability.

3. the use of overlapping reed frame, more stable than the ordinary pull spring frame, light output is more stable.

4. the lens are military-grade coating, more durable than ordinary lenses.

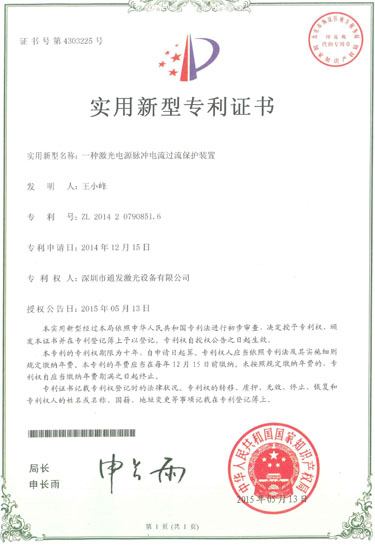

Patent of power supply pulse current overcurrent protection device and optical fiber laser laser welding machine fast time light separation device

Standard workbench

		Laser welding machine automatic bench The workbench can be linked with four axes to realize the spot welding of the curved surface.
		Manual work table of the laser welding machine Suitable for jewelry, small parts of manual laser spot welding, such as rings, necklaces, pendants, earrings, other laser welding, you can choose the microscope observation, or CCD display.
		Laser welding machine six-axis manipulator The manipulator in laser welding has been fully utilized, especially the automobile assembly line welding, the use of manipulator can achieve unmanned workshop production, efficiency is greatly improved. This manipulator is 5 axis control, machining radius is optional, can achieve the laser welding of large products.

Attachment and consumables

		Laser pulse xenon lamp Pulse xenon lamp chooses high quality ultraviolet filter quartz tube as the tube material, with high mass density electrode as the electrode of xenon lamp, has strong load capacity, high pump efficiency, good laser beam quality, long life and other characteristics.
		Open-hair laser welding machine protection lens In the welding process, it is inevitable that the melted metal solution splashes the phenomenon, and the protective lens mainly protects the focusing lens with high value inside. Avoid welding smoke splashing and dust pollution to the lens lens.
		Hair chiller filter element The main function of chiller filter is to remove solids in water, clean the cooling water, protect the laser and prolong the service life of laser equipment.

Product Parameter
