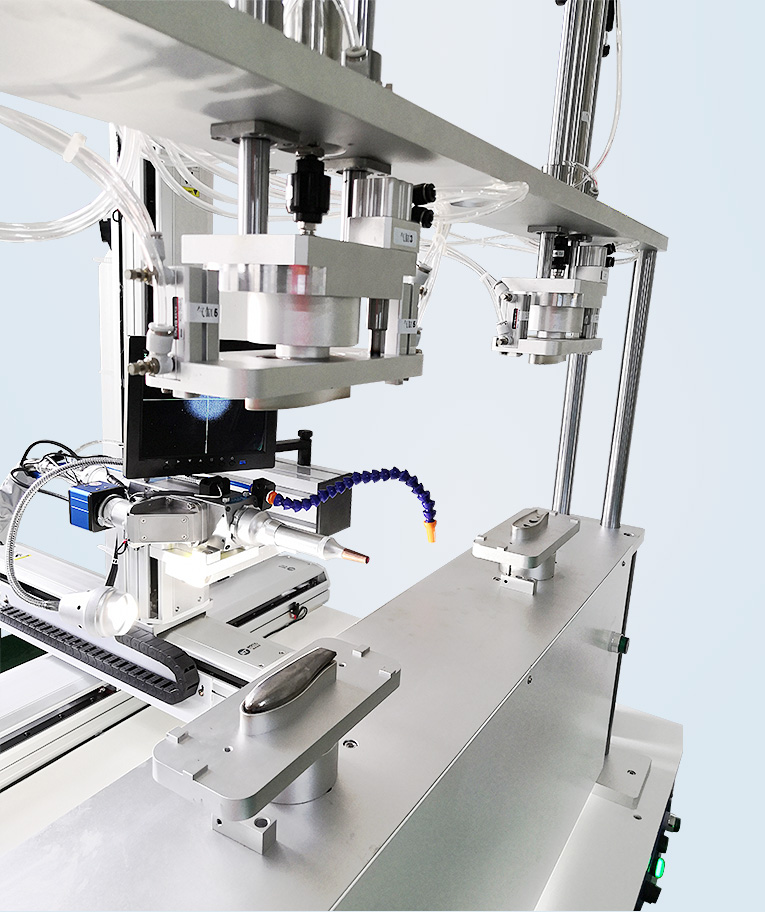

Picture of multistation laser welding machining sample

High-speed laser welding of the knife handle		Light laser welding
Laser welding of battery aluminum plate		Grace laser welding
Laser welding of galvanized plate		Laser welding of the cylinder gaskets

Applied range

It is suitable for stainless steel, carbon steel, copper, aluminum, gold, silver, chromium, nickel, titanium, tantalum and other metals or alloys, and is also used for welding between a variety of different materials. Widely used in aerospace, automotive parts, precision instruments, electronic components, home appliances, medical equipment, mobile phone communication, mobile phone parts, computer shell, stainless steel hutch products, vacuum vacuum, sensors, mold accessories, safe, distribution box, stainless steel products, aluminum products, copper products, alloy materials, watches, glasses, jewelry, hardware structure, etc.

Product characteristics

1, the workpiece can be butt welding, stack welding, sealing welding, wire filling welding, etc.

2. The welding speed is fast, the depth width ratio is high, the thermal influence area is small, the deformation is small, the weld is smooth and beautiful, no or only simple treatment after welding.

3. The working table can be configured, so that the welding head can be easily qualified for various multi-dimensional arbitrary space welding requirements, and the welding operation can be recycled. Accurate and fast welding of the welding workpiece. Can improve the welding efficiency of the workpiece to increase the output, improve the quality, very practical.

Standard workbench

		Laser welding machine six-axis manipulator The manipulator in laser welding has been fully utilized, especially the automobile assembly line welding, the use of manipulator can achieve unmanned workshop production, efficiency is greatly improved. This manipulator is 5 axis control, machining radius is optional, can achieve the laser welding of large products.
		Laser welding machine horizontal workbench Horizontal workbench, using the four-axis linkage control mode, can weld and process special-shaped products, Z-axis can be customized according to the different needs of customer products, the installation position can be increased, can also customize the customer needs to travel.
		Laser welding machine automatic bench The workbench can be linked with four axes to realize the spot welding of the curved surface.

Professional laser welding PC motion control system

1. Use the mature solution of industrial motion control to integrate the laser welding machine and motion control into the PC operation interface of the machine.

2. Powerful PC control, easy to program, debug and maintain. Can complete automatic or semi-automatic spot welding, butt welding, stack welding, sealing welding, for the complex plane straight line, arc and any track of welding.

3. The software adopts IDE integrated working environment, and the main interface integrates graphic editing, operation monitoring, acquisition and programming, and motion control. The layout is simple and professional, which can effectively improve work efficiency.

4. Real-time control, without other PC operating system plug-in.

5. High performance motion control can be carried out on the 4 axes to realize the programming of welding track in space.

6. Provide multi-language display (simplified Chinese, English, etc.), and support international applications.

Open laser PC motion control card	Operating interface of welding software of common hair laser welding machine
Operating interface of welding software of common hair laser welding machine	Operating interface of welding software of common hair laser welding machine

Product Parameter
