TFL-500ST plastic semiconductor laser welding machine

  • Safety: equipment using double slide station into welding external safety grating flexible: in and out of the workbench high degree of flexibility suitable for installation and positioning of a variety of products slide round products with rotary
  • Consultation hotline:4008-168-880
  • Product details

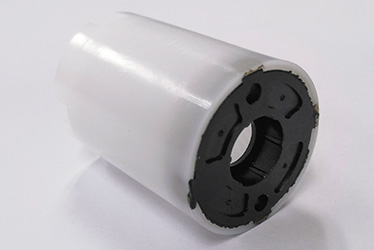

Plastic semiconductor laser welding machining sample picture




Laser welding of plastic material products


Laser welding of plastic material products


Laser welding of plastic material products


Laser welding of plastic material products




Applied range

Plastic product sealing, reducer box plastic case, motor plastic shell, etc.



Equipment advantage



Safety: equipment using sliding bench for welding, external safety grating

Flexible: high degree of flexibility in and out of the bench, suitable for the installation and positioning of a variety of products

High precision: each process adopts precision machining and assembly, and the process deformation is strictly controlled

Beautiful weld: the equipment ensures that the gas box weld is full, good sealing, melting depth is not less than the thickness of the thin wall side

Bed body structure: elevated gantry type structure, beam movement, has the largest processing space, extremely high dynamic performance

Large travel: elevated gantry XY 1.9 meters-0.3 travel range, slide table specification of 1.5 meters * 0.6 meters, slide into the travel of 1.3 meters, can achieve a large range of product processing and multi-tooling fixture installation and processing.

Processing head: laser head can achieve ± 60 degrees of rotation, high efficiency, can achieve multi-angle welding, strong applicability.



Standard workbench





Laser welding machine six-axis manipulator
The manipulator in laser welding has been fully utilized, especially the automobile assembly line welding, the use of manipulator can achieve unmanned workshop production, efficiency is greatly improved. This manipulator is 5 axis control, machining radius is optional, can achieve the laser welding of large products.



Laser welding machine horizontal workbench
Horizontal workbench, using the four-axis linkage control mode, can weld and process special-shaped products, Z-axis can be customized according to the different needs of customer products, the installation position can be increased, can also customize the customer needs to travel.



Laser welding machine automatic bench
The workbench can be linked with four axes to realize the spot welding of the curved surface.




Professional laser welding PC motion control system



1. Use the mature solution of industrial motion control to integrate the laser welding machine and motion control into the PC operation interface of the machine.

2. Powerful PC control, easy to program, debug and maintain. Can complete automatic or semi-automatic spot welding, butt welding, stack welding, sealing welding, for the complex plane straight line, arc and any track of welding.

3. The software adopts IDE integrated working environment, and the main interface integrates graphic editing, operation monitoring, acquisition and programming, and motion control. The layout is simple and professional, which can effectively improve work efficiency.

4. Real-time control, without other PC operating system plug-in.

5. High performance motion control can be carried out on the 4 axes to realize the programming of welding trajectory in space.

6. Provide multi-language display (simplified Chinese, English, etc.), and support international applications.




Open laser PC motion control card


Operating interface of welding software of common hair laser welding machine


Operating interface of welding software of common hair laser welding machine


Operating interface of welding software of common hair laser welding machine




Product Parameter



Laser model TFL-500TS
Laser wave length 976±20nm
Laser power 500W
Laser device output stability ±2%
Laser weight 40kg
Fibre diameter 200 μ m, multimode
Fiber length 10 Meters
The spot can reach Φ0.2mm
Pumping source Semiconductor
Beam quality ≤1.1
Aiming at positioning Red light + CCD camera surveillance system
Laser host power consumption ≤3KW
Electricity demand 220V±5%/50Hz
Cooling-down method Water-cold, deionized water
Water cooling temperature 27 ~33 ℃





More non-standard laser welding schemes can be customized on demand



Laser welding machine for auto parts                             Lighting accessories, laser welding machine



Automobile press, laser welding machine                                   Automobile press, laser welding machine



Laser welding machine for auto parts                               Aluminum-frame laser welding machine
