Pictures of the laser cleaning machine machining samples

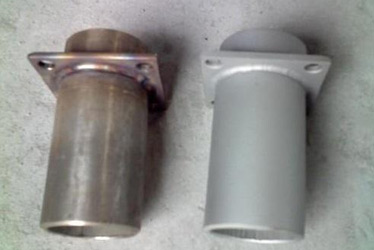

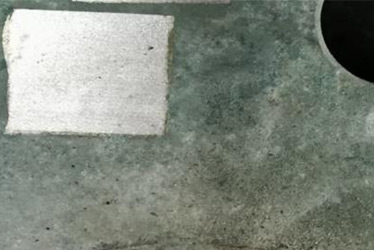

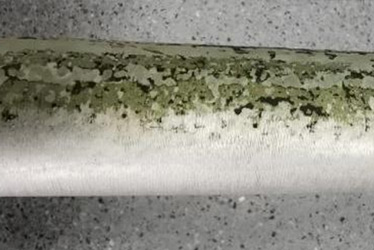

Copper alloy surface copper green cleaning		Steel pipe surface oxide, pollutants cleaning
Iron plate rust removal		Lacquer layer removal

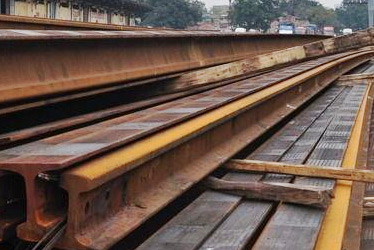

Mural cleaning		Track rust removal

Applied range

Laser cleaning has the characteristics of no grinding, non-contact, not only can be used to clean organic pollutants, but also can be used to clean inorganic substances, including metal corrosion, metal particles, dust, etc., the application effect includes: rust removal, paint removal, oil removal, cultural relics repair, glue removal, coating, coating. Suitable for rust layer, thick paint layer, deep oil pollution cleaning, as well as surface roughening, weld cleaning and other process links, high efficiency. Application industry: aviation, shipping, cultural relic protection, automobile peripheral, food industry, rail, rubber mold, other.

Performance characteristics

Relying on the advantages of MOPA structure, the cleaning machine is equipped with a cleaning pulsed fiber laser as the cleaning light source. The laser adopts the main oscillator power amplification MOPA (Master Oscillator Power Amplifier) structure, in which the main oscillation uses the semiconductor laser as the seed source, and the power amplification is realized through the traveling wave fiber amplifier. This MOPA fiber laser has the characteristics of independent adjustable pulse width and frequency, and can still maintain high stable peak power output despite the change of pulse width and frequency to adapt to a wider range of cleaning scenarios.

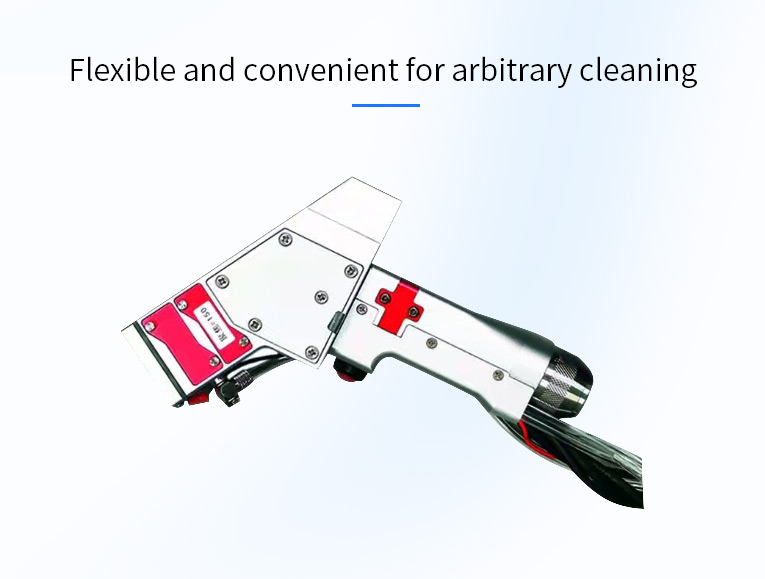

The handheld laser head is simple, small and light, can be used for a long time, keys and handle integrated design, simple and easy to use. The built-in scanning system adopts small high-speed motor and drive, the main body is integrated processing molding, strong and dustproof, stable and durable. The laser head adopts the innovative red light assisted focus design, which can easily use the red light indication to find the focus position under different field mirrors, and solves the problems of inaccurate focus and single adjustment mode of existing products on the market.

1. can be off-line work operation, power can be cleaned

2. Laser collimation output, output spot size can be customized (default 4mm spot)

3. The laser cleaning head is extremely light, weighs only 620g (excluding armored cable), and can be held for a long time

4. Patent red-light assisted focus technology can adjust the focus position according to different field mirrors

5. Wireless control, can realize parameter setting and light control, update parameters at any time

6. Portable pull rod box design, the machine weight of 28kg, can take high-speed rail or air consignment

7. Super integrated injection molding box, buffer design, stable structure, wear resistance, shockproof, fall resistance

Product Parameter
