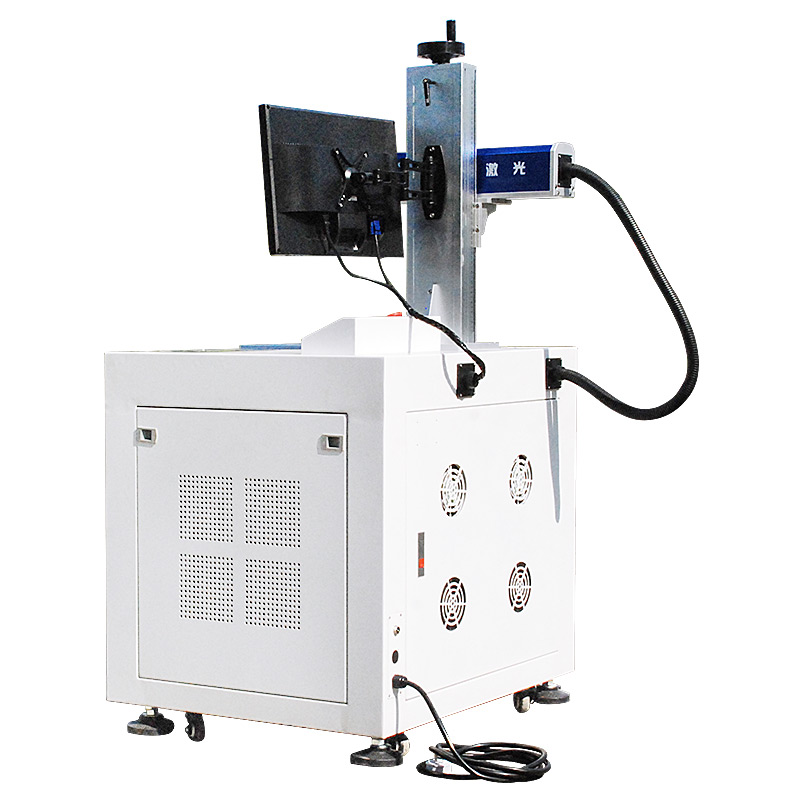

![](/uploads/allimg/230302/1-230302093334300.jpg)
Domestic fiber laser marking machine marking sample
![](/uploads/190815/1-1ZQ511202V08.jpg)
Button plastic laser marking
|
![](/uploads/190815/1-1ZQ5112052c3.jpg)
Die steel laser engraving
|
![](/uploads/190815/1-1ZQ51122493E.jpg)
Oil spray paint laser radium carving
|
![](/uploads/190815/1-1ZQ51123134Q.jpg)
Hardware stainless steel laser marking |
![](/uploads/190815/1-1ZQ51123403P.jpg)
Plastic laser marking of electronic chips |
![](/uploads/190815/1-1ZQ511235G19.jpg)
Metal laser marking of electronic parts housing |
Scope of application
Automotive machinery industry: metal bearing laser engraving, steel sleeve laser laser engraving, piston ring laser marking, machine tool nameplate laser marking, etc.;
Electronic communication industry: plastic keyboard laser marking, electronic components housing laser marking, home appliances panel laser marking, etc.
Hardware equipment industry: tool calibration laser marking, tool laser marking, tableware laser engraving, medical equipment laser engraving, etc.
Buckle sign industry: bag buckle laser marking machine, belt buckle laser engraving machine, gold and silver jewelry laser engraving, etc.
Instrument glasses industry: metal case laser engraving, optical frame laser engraving, instrument panel laser marking, etc.
Laser marking machine software use
![](/uploads/190815/1-1ZQ5112U2b0.jpg)
The laser marking machine configuration control software is simple to operate, easy to learn and easy to use:
1. Can design processing of simple graphic patterns;
2. The software supports TrueType fonts, single-line fonts (JSF), SHX fonts, dot matrix fonts (DMF), one-dimensional bar codes and two-dimensional bar codes;
![](/uploads/190815/1-1ZQ5113933942.jpg)

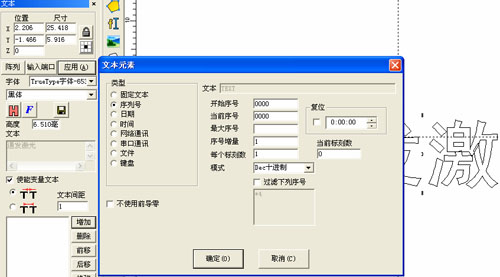

3. Flexible variable text processing, real-time change of text in the process of processing, can directly dynamically read and write text files and Excel files;
![](/uploads/190815/1-1ZQ5114201A6.jpg)
4. Text data can be read directly through serial port;
![](/uploads/190815/1-1ZQ5114224452.jpg)
5. The laser marking software can realize automatic text segmentation function, can adapt to complex processing;
6. Powerful node editing function and graphic editing function, curve welding, cutting and intersection operation;
7. Supports up to 256 pens (layers) and can set different processing parameters for different objects;
8. Compatible with common image formats (bmp,jpg,gif,tga,png,tif, etc.);
9. Compatible with commonly used vector graphics (ai,dxf,dst,plt, etc.);
10. Powerful filling function, support ring filling;
![](/uploads/190815/1-1ZQ5114251522.jpg)
11. A variety of control objects, users can freely control the system and external device interaction.
Performance and characteristics
1. The laser marking machine has excellent beam quality: compared with the traditional solid laser marking machine, its fundamental mode output, focusing spot diameter is less than 20um. The divergence Angle is only 1/4 of that of the semiconductor pumped laser. Especially suitable for precision and fine laser marking.
2. Low use cost: electro-optical conversion efficiency is up to 30%, the power consumption of the whole machine is only 600W, is the lamp pump solid laser marking machine 1/10, greatly saving energy expenditure, is energy saving and environmental protection laser marking machine;
3. Maintenance-free, long life: laser diode group as the pump source, fully closed optical path design, not affected by the adverse external environment;
4. Laser marking processing speed is fast: processing speed is 5 times of the traditional lamp pump laser marking machine, side pump laser marking machine 2-3 times.
Semiconductor laser marking machine laser and vibroscope
![](/uploads/190815/1-1ZQ5114GN17.jpg)
|
Optional 20W domestic mature laser |
![](/uploads/190815/1-1ZQ5114KII.jpg)
|
Optional 30W domestic mature laser |
![](/uploads/190815/1-1ZQ5114QW33.jpg) |
Domestic mature laser marking machine high speed vibroscope, stable performance |
Accessories and consumables
![](/uploads/190815/1-1ZQ5115114B7.jpg)
|
Laser marking machine f-θ focusing field mirror
Accessories Description: Field mirror according to the wavelength: 1064nm field mirror (also called YAG field mirror), 10.6 micron field mirror (also called CO2 field mirror), 532nm field mirror (also called green field mirror), 355nm field mirror (also called ultraviolet field mirror). This model is imported 1064nm laser marking airport mirror, processing range (unit mm) : 70*70; 100*100; 150 * 150
|
![](/uploads/190815/1-1ZQ511513G92.jpg)
|
Aluminum business card
Part description: Aluminum business card is used to debug the laser marking machine test laser focal length and test laser energy tools. Aluminum business card shape and ordinary business card similar, thickness is 0.1mm, the surface through anodizing, due to the thin thickness, in debugging focal length, only the aluminum business card placed on the processing surface of the product, the upper and lower adjustment of the laser head, until the laser energy on the aluminum business card is strong, the surface workpiece is also in a better marking focal length height.
|
![](/uploads/190815/1-1ZQ5115152G0.jpg) |
Laser marking machine rotation axis (optional)
Accessories description: Laser marking rotary head is used for circular products on the outer surface of the laser marking, the equipment software has the function of vibration mirror and rotating head 3-axis linkage marking, after a variety of rotary marking parameters set, can be 360° marking, if the measurement of product diameter is accurate, can realize seamless marking, no joint. |
Product parameter
Model number |
TFL-F20B |
TFL-F30B |
Power |
20W |
30W |
Repetition frequency |
20—100KHz |
20—100KHz |
Marking range |
100×100(可选配70—250幅面) |
100×100(Optional 70-250 format) |
Depth of engraving |
≤0.5mm |
≤0.5mm |
Engraving line speed |
≤12000mm/s |
≤12000mm/s |
The line width can reach |
0.01mm |
0.01mm |
Character reachable |
0.15mm |
0.15mm |
Repetition accuracy |
0.002mm |
0.002mm |
Power supply |
220V±10%/50Hz/5A |
220V±10%/50Hz/5A |
Machine power consumption |
600W |
600W |
Overall dimension |
1000mm×600mm×1500mm |
1000mm×600mm×1500mm |
