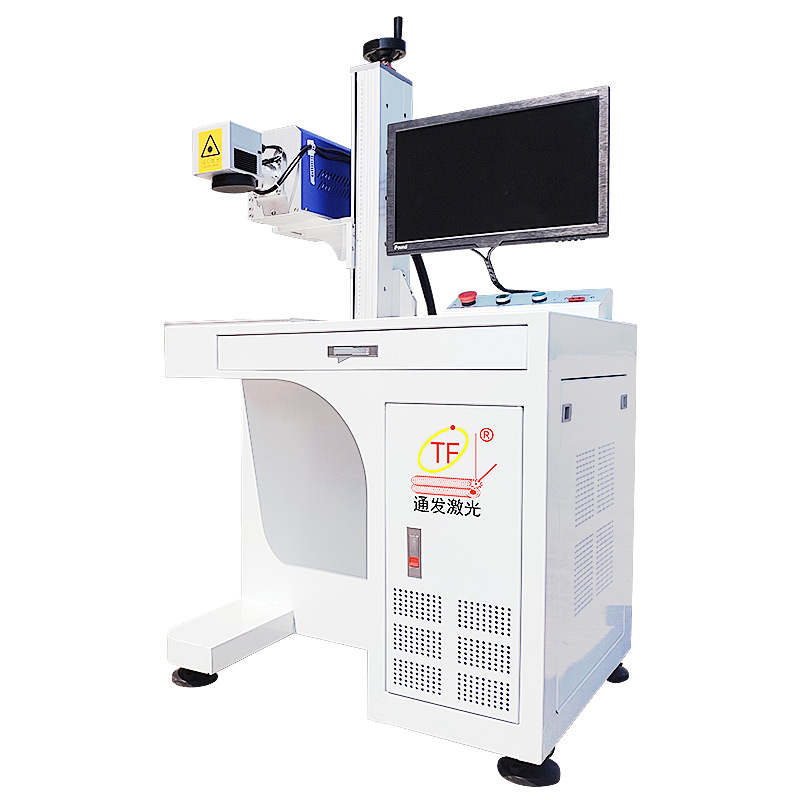

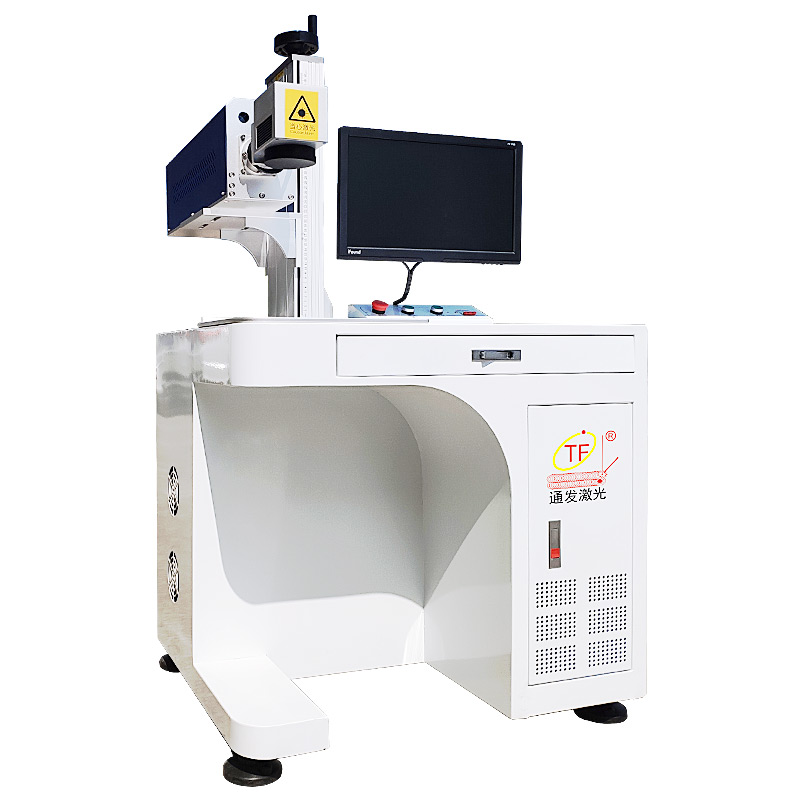

CO2 laser marking machine marking samples

Laser cut shoe leather	Drinking water bottle laser marking production date
Herbal medicine plastic packaging laser marking date coding	Laser marking of cigarette carton packaging

Accessories and consumables


Laser marking machine f-θ focusing field mirror Accessories Description: Field mirror according to the wavelength: 1064nm field mirror (also called YAG field mirror), 10.6 micron field mirror (also called CO2 field mirror), 532nm field mirror (also called green field mirror), 355nm field mirror (also called ultraviolet field mirror). This model is imported 1064nm laser marking airport mirror, processing range (unit mm) : 70*70; 100*100; 150 * 150

Laser marking machine rotation axis (optional) Accessories description: Laser marking rotary head is used for circular products on the outer surface of the laser marking, the equipment software has the function of vibration mirror and rotating head 3-axis linkage marking, after a variety of rotary marking parameters set, can be 360° marking, if the measurement of product diameter is accurate, can realize seamless marking, no joint.

Scope of application

1. CO2 laser marking machine optical machine can be laser engraving a variety of non-metallic materials.

2. Used in pharmaceutical packaging laser marking, building stone laser marking, beverage packaging online price marking date, rubber products laser marking, non-metallic craft gift laser marking, leather cutting marking processing and other industries.

3. Typical application cases: cigarette pack laser flight marking, sports shoe leather laser marking, etc.

Software use


1. Free design of the graphics to be processed;

2. Support TrueType fonts, single-line fonts (JSF), SHX fonts, dot matrix fonts (DMF), one-dimensional bar codes and two-dimensional bar codes;

3. Flexible variable text processing, real-time change of text in the process of processing, can directly dynamically read and write text files and Excel files;

4. Text data can be read directly through serial port;

5. And automatic text segmentation function, can adapt to the complex laser marking processing;

6. Powerful node editing function and graphic editing function, curve welding, cutting and intersection operation;

7. Support up to 256 pens (layers), can set different laser marking processing parameters for different objects;

8. Compatible with common image formats (bmp,jpg,gif,tga,png,tif, etc.);

9. Compatible with commonly used vector graphics (ai,dxf,dst,plt, etc.);

10. Powerful filling function, support ring filling, making laser marking processing pattern editing easier;

11. A variety of control objects, users can freely control the system and external device interaction.

Performance characteristics

1. Laser marking precision, high speed, engraving depth control;

2. Optional laser power, can be applied to a variety of non-metallic products for engraving and cutting;

3. No consumables, low processing cost - laser operation life up to 20000 hours;

4. Laser marking clear, not easy to wear, laser engraving and cutting efficiency, environmental protection, energy saving;

5. The 10.64um laser beam is used to expand the beam, focus and finally control the deflection of the galvanometer.

6. According to the predetermined trajectory on the workpiece surface, so that the working surface gasification to achieve marking effect;

7. The laser beam mode is good, the system performance is stable, maintenance-free, suitable for large quantities, multiple varieties, high speed, high precision continuous production of non-metal processing site;

Laser and vibroscope

	Adopt imported original sharp CO2 RF laser
	Adopt domestic general mature type CO2 galvanometer

Product parameter
